Dodge Journey: Description

Exhaust System

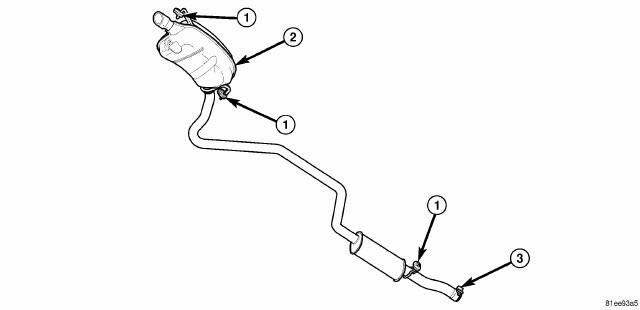

Fig. 1: Muffler/Exhaust Pipe Assembly - Single Tail Pipe

  1. - INSULATOR
  2. - MUFFLER/EXHAUST PIPE ASSEMBLY
  3. - BAND CLAMP

The exhaust system on the 2.4L and 2.7L engine models consists of a front mounted catalytic converter, single outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

Exhaust System
Fig. 2: Muffler/Exhaust Pipe Assembly - Dual Tail Pipe

  1. - INSULATOR
  2. - MUFFLER/EXHAUST PIPE ASSEMBLY
  3. - BAND CLAMP

The exhaust system on the 3.5L engine models consists of a front mounted catalytic converter, dual outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

    Diagnosis and testing
    EXCESSIVE EXHAUST SYSTEM NOISE CONDITION POSSIBLE CAUSES CORRECTION EXCESSIVE EXHAUST NOISE (UNDER HOOD) 1. Exhaust manifold cracked or broken.2. Manifold to cyl ...
