Dodge Journey: Input shaft, transmission

DISASSEMBLY

Manual Transmission BG6
Fig. 175: Snap Ring At Input Shaft

1. Remove the snap ring (2) that retains the input shaft bearing and sixth gear to the shaft.

Manual Transmission BG6
Fig. 176: Press Bearing From Input Shaft

2. Using a press (1) and steel blocks (4) remove sixth gear and the bearing (3) from the shaft.

Manual Transmission BG6
Fig. 177: Input 3rd Gear

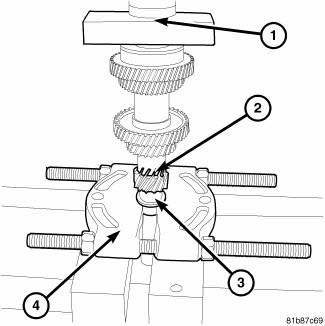

3. Using a Press (3) and the Bearing Splitter 1130 (1) remove third gear (2) from shaft.

4. Remove the spacer.

Manual Transmission BG6
Fig. 178: Fourth Gear Off Input Shaft

5. Using a Press (3) and the Bearing Splitter 1130 (1) remove forth gear (2) from shaft.

Manual Transmission BG6
Fig. 179: Input Shaft Bearing Race

6. Using a Press and the Bearing Splitter 1130 (3) remove the input shaft bearing race (2).

ASSEMBLY

Manual Transmission BG6
Fig. 180: Bearing On Input Shaft

1. Using a press (1) and steel blocks (4) install third gear and the bearing (3) onto the shaft.

Manual Transmission BG6
Fig. 181: Snap Ring At Input Shaft

2. Install the new snap ring (2) that retains the input shaft bearing and third gear to the shaft.

Manual Transmission BG6
Fig. 182: Install Input Shaft Bearing Race

3. Using Bearing Splitter 1130 (4) and a Press (1) install the input shaft bearing race (3) onto the input shaft (2).
