Dodge Journey: Seal, crankshaft oil, front

Removal

2.7L DOHC Engine
Fig. 212: Crankshaft Front Oil Seal - Removal

  1. - SPECIAL TOOL 6771

1. Remove crankshaft vibration damper.

2. Install Special Tool 8194, Insert into crankshaft nose. Remove seal using Special Tool 6771, Remover (1).

Installation

2.7L DOHC Engine

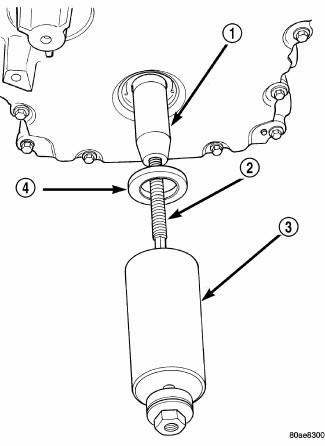

Fig. 213: Crankshaft Front Oil Seal - Installation

  1. - SPECIAL TOOL 6780-2
  2. - SPECIAL TOOL 8179
  3. - SPECIAL TOOL 6780-1
  4. - SEAL

1. Install new seal using Special Tools 6780-2 Sleeve, 6780-1 Installer, and 8179 Stud (2).

2. Install crankshaft vibration damper.

    Rod, piston and connecting
    Description Fig. 206: Piston & Connecting Rod - "F" TOWARD FRONT OF ENGINE - RING COMPRESSOR - SPECIAL TOOL 8189 - OIL SQUIRT HOLE The pistons (1) are made of a high stre ...

    Seal, crankshaft oil, rear
    Removal Fig. 214: REAR MAIN SEAL-INSTALLED The crankshaft rear oil seal is incorporated in the seal adapter (2) and can not be removed from the adapter. The crankshaft rear oil seal/seal adapte ...
