Dodge Journey: Heated Mirrors

DESCRIPTION

Heated Mirrors

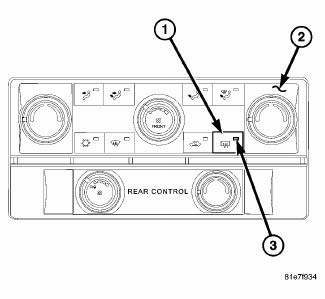

Fig. 1: Rear Window Defogger (EBL) System

NOTE: Manual tri-zone temperature A/C-heater control shown. Other A/C-heater controls similar.

When equipped, the heated mirror system operates in concert with the rear window defogger (EBL) system and is controlled by the rear window defogger switch (1) located in the A/C-heater control (2) in the center of the instrument panel. An amber indicator lamp (3) in the rear window defogger switch will illuminate to indicate when the heated mirror system is turned on.

The heated mirror system will be automatically turned off after an initial programmed time interval of about 10 minutes as long as the ignition switch is in RUN. After the initial time interval has expired, if the rear window defogger switch is pressed to ON again during the same ignition cycle, the heated mirror system will automatically turn off after about 5 minutes. The heated mirror system will also turn off if the ignition switch is turned to any position other than RUN or by manually pressing the rear window defogger switch a second time.

Circuit protection for the heated mirror system is provided by a fuse located in the totally integrated power module (TIPM).

OPERATION

When equipped, the heated mirror system is activated when the rear window defogger (EBL) system is turned on. When the heated mirror system is activated, an electric heater grid located behind the glass of each outside rear view mirror becomes energized and produces heat to help clear the mirror of ice, snow, or fog.

If the outside mirror heating grids are both inoperative. The heating grid behind each outside mirror glass cannot be repaired and the mirror assembly must be replaced if the heating grid is found inoperative or damaged.
