Dodge Journey: Sensor, speed, input

DESCRIPTION

Automatic Transmission 41TE

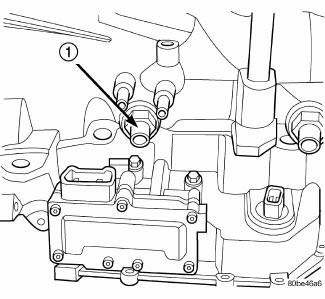

Fig. 369: Removing/Installing Input Speed Sensor

  1. - INPUT SPEED SENSOR

The Input Speed Sensor (1) , is a two-wire magnetic pickup device that generates AC signals as rotation occurs.

It is threaded into the transaxle case.

Automatic Transmission 41TE
Fig. 370: Identifying Input Speed Sensor & O-Ring

  1. - INPUT SPEED SENSOR
  2. - O-RING

The Input Speed Sensor (1) is sealed with an O-ring (2) , and is considered a primary input to the Powertrain/Transmission Control Module.

OPERATION

Automatic Transmission 41TE
Fig. 371: Identifying Input Speed Sensor & Input Clutch Hub

  1. - INPUT SPEED SENSOR
  2. - TRANSAXLE CASE
  3. - INPUT CLUTCH HUB

The Input Speed Sensor (1) provides information on how fast the input shaft is rotating. As the teeth of the input clutch hub (3) pass by the sensor coil, an AC voltage is generated and sent to the PCM/TCM. The PCM/TCM interprets this information as input shaft RPM.

The PCM/TCM compares the input speed signal with output speed signal to determine the following:

  • Transmission gear ratio
  • Speed ratio error detection
  • CVI calculation

The PCM/TCM also compares the input speed signal and the engine speed signal to determine the following:

  • Torque converter clutch slippage
  • Torque converter element speed ratio

REMOVAL

Automatic Transmission 41TE
Fig. 372: Identifying Transmission Connectors

  1. - SOLENOID PACK CONNECTOR
  2. - INPUT SPEED SENSOR CONNECTOR
  3. - OUTPUT SPEED SENSOR CONNECTOR
  4. - TRANSMISSION RANGE SENSOR CONNECTOR

1. Disconnect battery negative cable.

2. Disconnect input speed sensor connector (2) .

Automatic Transmission 41TE
Fig. 373: Removing/Installing Input Speed Sensor

  1. - INPUT SPEED SENSOR

3. Unscrew and remove input speed sensor (1) .

Automatic Transmission 41TE
Fig. 374: Identifying Input Speed Sensor & O-Ring

  1. - INPUT SPEED SENSOR
  2. - O-RING

4. Inspect speed sensor O-ring (2) and replace if necessary.

INSTALLATION

Automatic Transmission 41TE
Fig. 375: Identifying Input Speed Sensor & O-Ring

  1. - INPUT SPEED SENSOR
  2. - O-RING

1. Verify O-ring (2) is installed into position.

Automatic Transmission 41TE
Fig. 376: Removing/Installing Input Speed Sensor

  1. - INPUT SPEED SENSOR

2. Install and tighten input speed sensor (1) to 27 N.m (20 ft. lbs.).

Automatic Transmission 41TE
Fig. 377: Identifying Transmission Connectors

  1. - SOLENOID PACK CONNECTOR
  2. - INPUT SPEED SENSOR CONNECTOR
  3. - OUTPUT SPEED SENSOR CONNECTOR
  4. - TRANSMISSION RANGE SENSOR CONNECTOR

3. Connect speed sensor connector (4) .

4. Connect battery negative cable.
