Dodge Journey: Removal

LEFT-HAND DRIVE

NOTE: The ABM is only separately serviceable for non-HSA (Hill Start Assist) equipped vehicles. Do not remove the ABM for vehicles equipped with HSA.

1. Disconnect the negative (ground) cable from the battery and isolate it.

2. Remove the engine appearance cover.

Electronic Control Modules
Fig. 3: Cowl Top Screen

3. Remove the two push-pins (1) securing the cowl top screen at the ends. Remove the remaining push-pins (2). Remove the cowl top screen (3).

4. Remove the wiper arms.

Electronic Control Modules
Fig. 4: Cowl Screen

5. Remove the push-pins (1) securing the cowl screen to the wheelhouse brace and cowl. Rotate the screw (2) in the center of the cowl screen 90º clockwise to release the screen. Remove the cowl screen (3).

Electronic Control Modules
Fig. 5: Wheelhouse Brace

6. Remove the eight mounting bolts (four each side) (1) securing the wheel house brace to the strut towers.

7. Remove the wheelhouse brace (2).

8. Remove two screws, then remove the fresh air plenum.

9. Raise and support the vehicle.

Electronic Control Modules
Fig. 6: Locating Integrated Control Unit (ICU)

10. Loosen, but do not remove, the two mounting screws (2) attaching the ICU (1) mounting bracket to the body.

11. Lift the ICU and mounting bracket (1) upward to near the top of the slots in the bracket, then snug one or both of the mounting screws (2) to hold the ICU in this position.

12. Lower the vehicle.

CAUTION: Before disassembling the ICU, the ICU must be thoroughly cleaned.

This must be done to prevent dirt particles and debris from entering into vital areas of the ICU.

13. Thoroughly clean all surfaces of the ICU and brake tubes. Use only a solvent such as Mopar Brake Parts Cleaner or equivalent.

Electronic Control Modules
Fig. 7: ABM Connector Release Tabs

NOTE: Use this figure in the following step to release the ABM harness connector cover. It shows the location of the release tabs.

Electronic Control Modules
Fig. 8: Wiring Harness Connector At ABM

  1. - ABM (PART OF ICU)
  2. - WIRING HARNESS CONNECTOR

14. Disconnect the ABM harness connector from the Antilock Brake Module (ABM). To do so:

  1. Depress the tabs on each side of the connector cover, then
  2. Pull outward and upward on the lower half of the cover until it locks into position pointing straight outward (2). The connector can then be pulled straight outward off the ABM (1).

Electronic Control Modules
Fig. 9: ABM Mounting

15. Remove the four screws (1) attaching the ABM (2) to the HCU. A Torx T20 bit approximately 2 inches long works well.

Electronic Control Modules
Fig. 10: Identifying ABM, HCU, & Solenoid Valve Stem

  1. - ABM
  2. - HCU
  3. - SOLENOID VALVE STE

CAUTION: When removing the ABM from the HCU, be sure to completely separate the two components (approximately 38 mm (1.5 inches)) before removing the ABM. Otherwise, damage to the pressure sensor or pump motor connection may result, requiring HCU replacement.

Do not to touch the sensor terminals on the HCU side or the contact pads on the ABM side as this may result in contamination and issues in the future.

16. Separate the ABM (1) from the HCU (2).

RIGHT-HAND DRIVE

NOTE: The ABM is only separately serviceable for non-HSA (Hill Start Assist) equipped vehicles. Do not remove the ABM for vehicles equipped with HSA.

1. Disconnect the negative (ground) cable from the battery and isolate it.

2. Remove air inlet hose (1) between air cleaner housing and engine.

CAUTION: Before disassembling the ICU, the ICU must be thoroughly cleaned.

This must be done to prevent dirt particles and debris from entering into vital areas of the ICU.

3. Thoroughly clean all surfaces of the ICU and brake tubes. Use only a solvent such as Mopar Brake Parts Cleaner or equivalent.

Electronic Control Modules
Fig. 11: ABM Connector Release Tabs

NOTE: Use this figure in the following step to release the ABM harness connector cover. It shows the location of the release tabs.

Electronic Control Modules
Fig. 12: Wiring Harness Connector At ABM

  1. - ABM (PART OF ICU)
  2. - WIRING HARNESS CONNECTOR

4. Disconnect the ABM harness connector from the Antilock Brake Module (ABM). To do so:

  1.  Depress the tabs on each side of the connector cover, then
  2.  Pull outward and upward on the lower half of the cover until it locks into position pointing straight outward (2). The connector can then be pulled straight outward off the ABM (1).

Electronic Control Modules
Fig. 13: ABM Mounting Screws

  1. - MOUNTING SCREWS
  2. - ABM

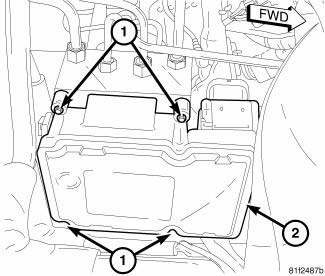

5. Remove the four screws (1) attaching the ABM (2) to the HCU.

Electronic Control Modules
Fig. 14: ABM Assembly To HCU

  1. - ABM
  2. - HCU
  3. - SOLENOID VALVE STEM

CAUTION: When removing the ABM from the HCU, be sure to completely separate the two components (approximately 38 mm (1.5 inches)) before removing the ABM. Otherwise, damage to the pressure sensor or pump motor connection may result, requiring HCU replacement.

Do not to touch the sensor terminals on the HCU side or the contact pads on the ABM side as this may result in contamination and issues in the future.

6. Separate the ABM (1) from the HCU (2).
