Dodge Journey: Valve, positive crankcase ventilation (PCV)

Description

The PCV valve contains a spring loaded plunger. The plunger meters the amount of crankcase vapors routed into the combustion chamber based on intake manifold vacuum.

Operation

Emissions Control
Fig. 39: Engine Off or Engine Backfire No Vapor Flow

When the engine is not operating or during an engine backfire, the spring forces the plunger back against the seat. This prevents vapors from flowing through the valve.

Emissions Control
Fig. 40: High Intake Manifold Vacuum Minimal Vapor Flow

When the engine is at idle or cruising, high manifold vacuum is present. At these times manifold vacuum is able to completely compress the spring and pull the plunger to the top of the valve. In this position there is minimal vapor flow through the valve.

Emissions Control
Fig. 41: Moderate Intake Manifold Vacuum Maximum Vapor Flow

During periods of moderate intake manifold vacuum the plunger is only pulled part way back from the inlet.

This results in maximum vapor flow through the valve.

Diagnosis and Testing

PCV SYSTEM

WARNING: apply parking brake and/or block wheels before performing any test or adjustment with the engine operating.

1. With engine idling, remove the hose from the PCV valve. If the valve is not plugged, a hissing noise will be heard as air passes through the valve. A strong vacuum should also be felt when a finger is placed over the valve inlet.

2. Install hose on PCV valve. Remove the make-up air hose from the air plenum at the rear of the engine.

Hold a piece of stiff paper (parts tag) loosely over the end of the make-up air hose.

3. After allowing approximately one minute for crankcase pressure to reduce, the paper should draw up against the hose with noticeable force. If the engine does not draw the paper against the grommet after installing a new valve, replace the PCV valve hose.

4. Turn the engine off. Remove the PCV valve from intake manifold. The valve should rattle when shaken.

5. Replace the PCV valve and retest the system if it does not operate as described in the preceding tests. Do not attempt to clean the old PCV valve.

Removal

2.4L

Emissions Control
Fig. 42: Positive Crankcase Ventilation Hose Removed

1. Remove the engine cover.

2. Remove the hose from the PCV valve.

Emissions Control
Fig. 43: Positive Crankcase Ventilation Removed

3. Unscrew the PCV valve.

2.7L

Emissions Control

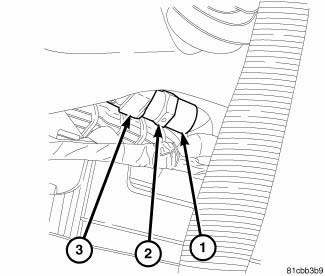

Fig. 44: Positive Crankcase Ventilation Valve - 2.7L

The Positive Crankcase Ventilation (PCV) valve is located under the intake manifold on the right rear bank of the engine.

1. Remove positive crankcase ventilation (PCV) hose (3) from PCV valve (2).

2. Unscrew PCV valve (2) from valve cover (1).

3.5L

Emissions Control
Fig. 45: Positive Crankcase Ventilation Valve - 3.5L

The Positive Crankcase Ventilation (PCV) valve is located on the end of the rear valve cover.

1. Remove positive crankcase ventilation (PCV) hose (2) from PCV valve (3).

2. Unscrew PCV valve (3) from valve cover (1).

Installation

2.4L

Emissions Control
Fig. 46: Positive Crankcase Ventilation Removed

1. Lubricate the O-ring on the valve.

2. Install the PCV valve and tighten the valve to 8.1 N.m (72 in. lbs.).

Emissions Control
Fig. 47: Positive Crankcase Ventilation Hose Removed

3. Install the hose.

4. Install engine cover.

2.7L

Emissions Control
Fig. 48: Positive Crankcase Ventilation Valve - 2.7L

1. Install positive crankcase ventilation (PCV) valve (2) to valve cover (1) and tighten to 4 N.m (35 in. lbs.).

2. Install positive crankcase ventilation (PCV) hose (3) to PCV valve (2).

3.5L

Emissions Control
Fig. 49: Positive Crankcase Ventilation Valve - 3.5L

1. Install positive crankcase ventilation (PCV) valve (3) to valve cover (1) and tighten to 4 N.m (35 in. lbs.).

2. Install positive crankcase ventilation (PCV) hose (2) to PCV valve (3).
