Dodge Journey: Removal

2.0L TURBO DIESEL

Charging
Fig. 2: Generator Cables

1. Remove engine cover.

2. Disconnect and isolate the negative battery cable.

3. Remove accessory drive belt.

4. Disconnect battery cable from generator.

5. Disconnect electrical connector from generator.

Charging

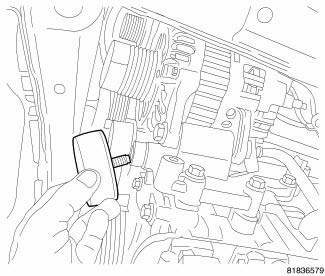

Fig. 3: Idler Cap Location

6. Remove cap from idler pulley mounting bolt.

Charging
Fig. 4: Idler Pulley Bolt Location

7. Remove idler pulley bolt.

Charging
Fig. 5: Right Engine Mount

8. It may be necessary to remove the two engine mounting bolts (2) from the right engine mount (1) and reposition engine in order to remove the lower generator mounting bolt. Reposition ground strap (3) if required.

Charging
Fig. 6: Generator Lower Mounting Bolt

9. Remove lower generator mounting bolt.

Charging
Fig. 7: Removing/Installing Generator

10. Remove upper generator mounting bolt.

11. Remove generator.

2.4L

Charging
Fig. 8: Removing/Installing Underbody Air Dam

CAUTION: Disconnect the negative battery cable before removing the battery output wire from generator. Failure to do so can result in injury or damage to electrical system.

1. Disconnect and isolate negative battery cable.

2. Remove underbody air dam.

3. Remove right front wheelhouse splash shield.

4. Remove generator drive belt.

Charging
Fig. 9: Identifying A/C Compressor

NOTE: Do not disconnect the A/C lines when relocating the A/C compressor.

CAUTION: Support the A/C compressor when relocating. Failure to properly support the A/C compressor can cause damage to the lines and or seals. This can cause a leak in the A/C system.

5. Relocate A/C compresso

Charging
Fig. 10: 2.4L Generator Electrical Connector

CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

6. Unsnap plastic protective cover (1) from B+ mounting stud.

7. Remove B+ terminal mounting nut (2) and B+ terminal (3) from generator.

8. Disconnect field wire electrical connector (4) by pushing on connector tab.

Charging
Fig. 11: Removing/Installing Idler Pulley

9. Remove bolt and lower idler pulley.

Charging
Fig. 12: Removing/Installing Generator

10. Remove upper mounting bolt (3) from generator (1).

11. Remove lower mounting bolt (2) from generator (1).

12. Remove generator (1) from engine mounting bracket.

Charging
Fig. 13: Identifying Generator Pulley

13. Rotate generator so that the pulley faces down.

Charging
Fig. 14: Removing/Installing Generator

14. Position generator in order to move past the A/C compressor and out of vehicle.

2.7L

Charging
Fig. 15: Alternator Electrical Connection

CAUTION: Disconnect the negative battery cable before removing the battery output wire from generator. Failure to do so can result in injury or damage to electrical system.

1. Disconnect and isolate negative battery cable.

CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

2. Remove generator drive belt.

3. Unsnap plastic protective cover (1) from B+ mounting stud.

4. Remove B+ terminal mounting nut (2) and B+ terminal (3) at top of generator.

5. Disconnect field wire electrical connector (4) by pushing on connector tab.

Charging
Fig. 16: 2.7L Removing/Installing Generator

6. Remove upper mounting bolts (3) from generator (1).

7. Remove lower mounting bolt (2) from generator (1).

8. Remove generator (1) from engine mounting bracket.

3.5L

Charging
Fig. 17: 3.5L Generator Electrical Connector

CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

1. Disconnect and isolate negative battery cable.

2. Remove generator drive belt.

3. Unsnap plastic protective cover (4) from B+ mounting stud.

4. Remove B+ terminal mounting nut (3) and B+ terminal (2) at top of generator.

5. Disconnect field wire electrical connector (1) by pushing on connector tab.

Charging
Fig. 18: 3.5L Removing/Installing Generator

6. Remove short mounting bolt (3) from generator (1).

7. Remove long mounting bolt (2) from generator (1).

8. Remove generator (1) from engine mounting bracket.
