Dodge Journey: Switch, remote radio

DESCRIPTION

Remote radio control switches are rocker-type switch units are mounted in the upper spoke covers of the rear (instrument panel side) steering wheel trim cover. The switch unit on the left side is the seek switch and has seek up, seek down, and preset station advance switch functions. The switch unit on the right side is the volume control switch and has volume up, volume down, and mode advance switch functions.

The two remote radio switch units are each retained in a mounting hole located on opposite sides of the rear steering wheel trim cover by four integral snap features. A plastic bracket on the back of each switch unit provides additional support for the unit by extending towards the center of the steering wheel where it is clamped between the steering wheel armature and the steering wheel rear trim cover mounting boss by the trim cover mounting screw.

The two remote radio switch units share a common steering wheel wire harness with the vehicle speed control switches. The steering wheel wire harness is connected to the instrument panel wire harness through the clock-spring.

DIAGNOSIS AND TESTING

REMOTE SWITCHES

Any diagnosis of the Audio system should begin with the use of the scan tool. For information on the use of the scan tool, refer to the appropriate Diagnostic Service information.

For complete circuit diagrams, refer to SYSTEM WIRING DIAGRAMS .

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

1. Disconnect and isolate the battery negative cable. Remove the remote radio switch(es) from the steering wheel.

2. Use an ohmmeter to check the switch resistances as shown in REMOTE RADIO SWITCH TEST. If the remote radio switch resistances check OK , go to 3. If not OK, replace the faulty switch.

REMOTE RADIO SWITCH TEST

REMOTE RADIO SWITCH TEST

3. Reconnect the battery negative cable. Turn the ignition switch to the ON position. Check for 5 volts at the radio control circuit cavities of the steering wheel wire harness connectors for both remote radio switches.

If OK, refer to BODY . If not OK, repair the circuit as required.

REMOVAL

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

Audio and Video
Fig. 20: Removing / Installing Driver Side Airbag Module

1. Disconnect and isolate the battery negative cable.

2. Remove the driver side airbag module from the steering wheel.

Audio and Video
Fig. 21: Retainers, Horn Connector And Button Assembly

3. Disconnect the horn connector (3).

4. Remove retainers (1) and remove the horn button assembly (2).

Audio and Video
Fig. 22: Speed Control Switch

5. Remove the speed control switch (3).

Audio and Video
Fig. 23: Radio Switches

6. Disconnect the radio switches (1).

7. From the inside of the steering wheel rear trim cover, press firmly and evenly outward on the back of the switch to disengage the four snap features that secure the switch to the inside of the mounting hole.

8. From the outside of the steering wheel rear trim cover, remove the remote radio switch from the trim cover mounting hole.

INSTALLATION

WARNING: Disable the airbag system before attempting any steering wheel, steering column, seat belt tensioner, side airbag or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable. Wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

Audio and Video

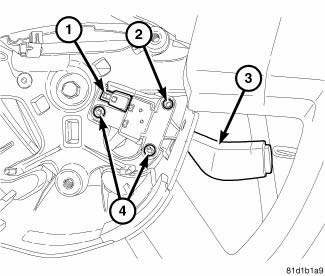

Fig. 24: Radio Switches

1. Position the remote radio switch to the mounting hole on the outside of the steering wheel rear trim cover.

Be certain that the connector receptacle is oriented toward the bottom of the switch and pointed toward the center of the steering wheel.

2. Press firmly and evenly on the remote radio switch until each of the switch snap features is fully engaged in the mounting hole of the steering wheel rear trim cover.

3. Reconnect the steering wheel wire harness connector to the connector receptacle of the remote radio switch (1).

Audio and Video
Fig. 25: Speed Control Switch

4. Install the speed control switch (3).

Audio and Video
Fig. 26: Retainers, Horn Connector And Button Assembly

5. Install the horn button assembly (2) and install the three retainers (1).

6. Connect the horn connector (3).

Audio and Video
Fig. 27: Removing / Installing Driver Side Airbag Module

7. Install the driver side airbag module to the steering wheel.

8. Connect the battery negative cable.
