REMOVAL

BULB

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

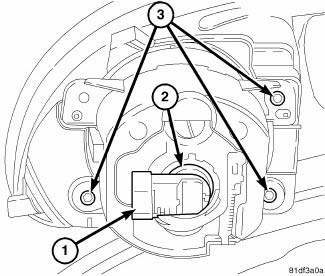

Fig. 7: Front Fog Lamp Bulb Connector Receptacle

1. Disconnect and isolate the battery negative cable.

2. Remove the lower inner front wheel house splash shield.

3. Disconnect the headlamp and dash wire harness connector from the front fog lamp bulb (2) connector receptacle (1).

4. Firmly grasp the bulb on the back of the front fog lamp housing and rotate it counterclockwise about 30 degrees to unlock it.

5. Pull the bulb straight out from the keyed opening in the housing.

LAMP

Fig. 8: Front Fog Lamp Bulb Connector Receptacle

1. Disconnect and isolate the battery negative cable.

2. Remove the lower inner front wheel house splash shield.

3. Disconnect the headlamp and dash wire harness connector from the front fog lamp bulb (2) connector receptacle (1).

4. Remove the three screws (3) that secure the front fog lamp mounting bracket to the fog lamp bezel on the back of the lower front fascia.

5. Remove the front fog lamp from the vehicle.

INSTALLATION

BULB

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

Fig. 9: Front Fog Lamp Bulb Connector Receptacle

1. Align the front fog lamp bulb (2) with the keyed opening on the back of the front fog lamp housing.

2. Insert the bulb into the housing until it is firmly seated.

3. Rotate the bulb clockwise about 30 degrees to lock it into place. The bulb connector receptacle should be pointed outboard and horizontal in orientation.

4. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb connector receptacle (1).

5. Reinstall the lower inner front wheel house splash shield. 6. Reconnect the battery negative cable.

LAMP

Fig. 10: Front Fog Lamp Bulb Connector Receptacle Screw

1. Position the front fog lamp mounting bracket to the fog lamp bezel on the back of the lower front fascia.

2. Install and tighten the three screws (3) that secure the mounting bracket to the bezel. Tighten the screws securely.

3. Reconnect the headlamp and dash wire harness connector to the front fog lamp bulb (2) connector receptacle (1).

4. Reinstall the lower inner front wheel house splash shield. 5. Reconnect the battery negative cable.

6. Confirm proper fog lamp alignment.
