Dodge Journey: Horn

REMOVAL

Horn System

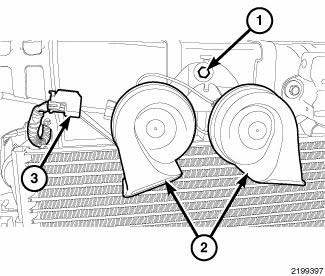

Fig. 1: Removing / Installing Horns

1. Disconnect and isolate the negative battery cable.

2. Remove the push pin type retainers along the top of the grille assembly and position the grille aside.

3. Disconnect the wire harness connectors (3) from the horns (2).

4. Remove mounting bolt (1) securing the horn bracket and remove horns.

INSTALLATION

Horn System
Fig. 2: Removing / Installing Horns

1. Install the horn assemblies (2).

2. Install the horn mounting bolt (1).

3. Connect the wire harness connector (3).

4. Position the grille and install the retainers.

5. Connect the negative battery cable.
