Dodge Journey: Frame

SPECIFICATIONS

FRAME DIMENSIONS

Frame dimensions are listed in metric scale. All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.

VEHICLE PREPARATION

Position the vehicle on a level work surface. Using screw or bottle jacks, adjust the vehicle PLP heights to the specified dimension above a level work surface. Vertical dimensions can be taken from the work surface to the locations indicated were applicable.

VEHICLE PREPARATION INDEX

VEHICLE PREPARATION INDEX

Frame and Bumpers

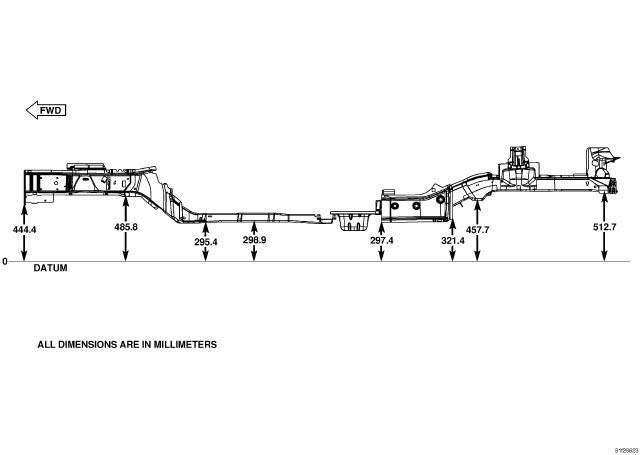

Fig. 27: Frame Dimensions - Side View

Frame and Bumpers

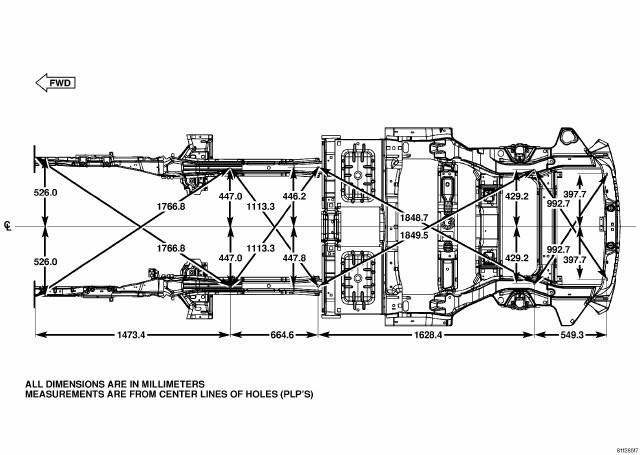

Fig. 28: Frame Dimensions - Bottom View

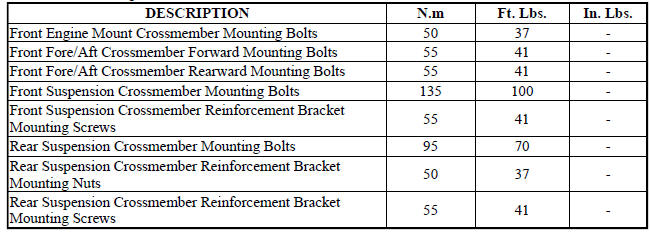

FASTENER TORQUE

FASTENER TORQUE
