Dodge Journey: Fascia, front lower, closeout

REMOVAL

Frame and Bumpers

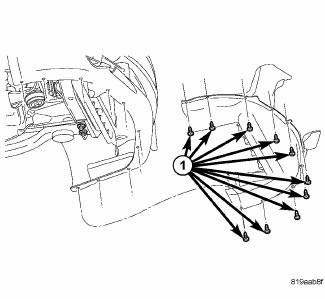

Fig. 11: Lower Fascia

1. Remove fasteners (5) to lower closeout.

Frame and Bumpers

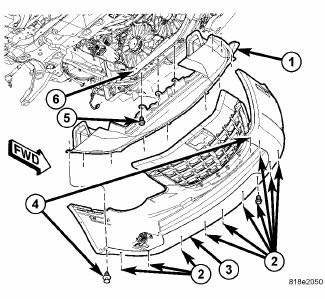

Fig. 12: Push Pins - Front Lower Fascia

2. Remove push pins (1) to lower closeout.

3. Remove the front lower fascia.

INSTALLATION

Frame and Bumpers
Fig. 13: Push Pins - Front Lower Fascia

1. Install the front lower fascia.

2. Install the push pins (1) to lower closeout.

Frame and Bumpers
Fig. 14: Lower Fascia

    Fascia, front
    REMOVAL Fig. 1: Pushpins 1. Release hood latch and open hood. 2. Remove the pushpins for the fascia (2) at the radiator support. Fig. 2: Pop Rivets 3. Hoist and support vehicle on safety st ...

    Fascia, rear
    REMOVAL Fig. 15: Push Pins 1. Open the hatch. 2. Remove the 6 pushpins (1) securing the fascia (2). Fig. 16: Rivets 3. Remove the rivets (2) and the Torx screw (3) around the wheel well for ...
