Dodge Journey: FUSES

Totally Integrated Power Module

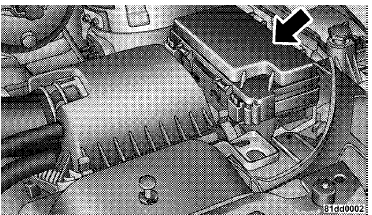

The Totally Integrated Power Module (TIPM) is located in the engine compartment near the air cleaner assembly.

This center contains fuses and relays.

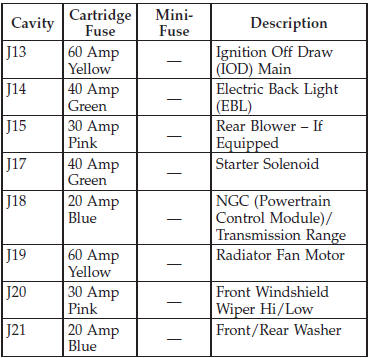

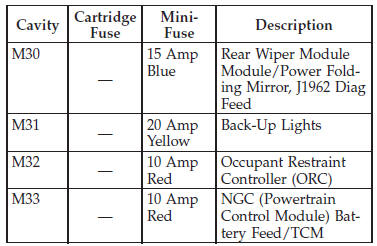

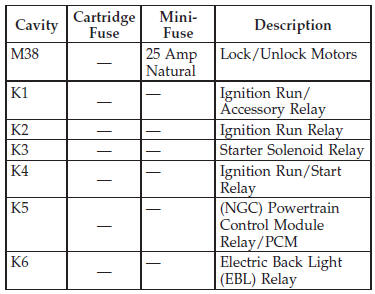

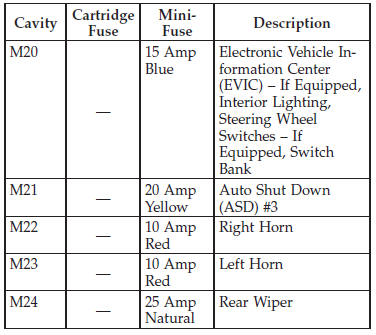

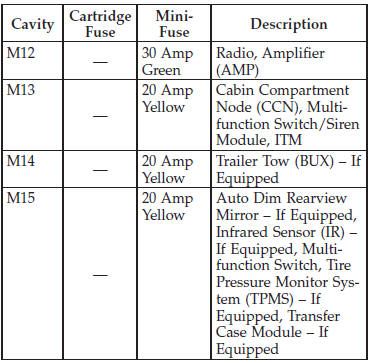

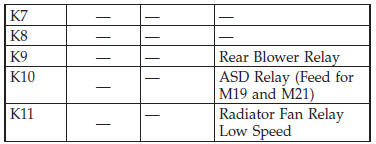

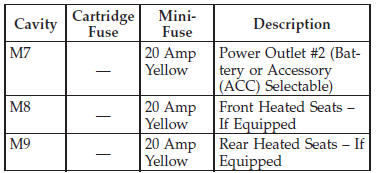

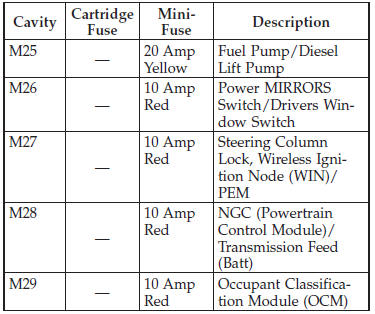

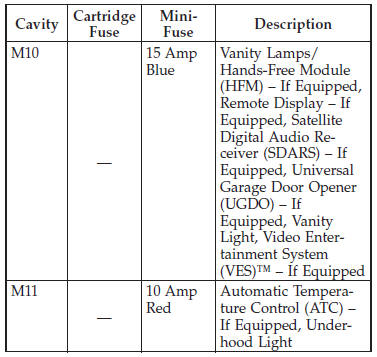

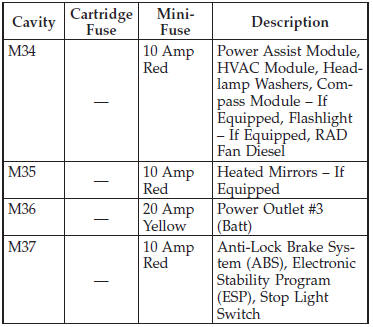

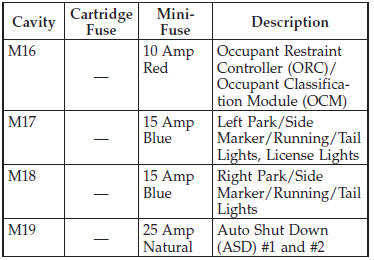

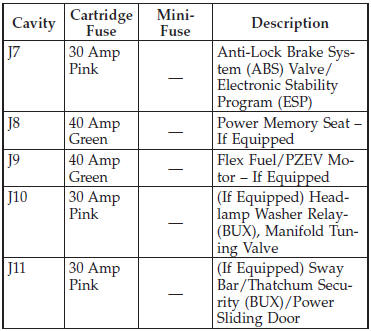

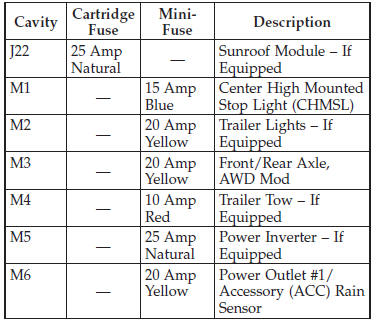

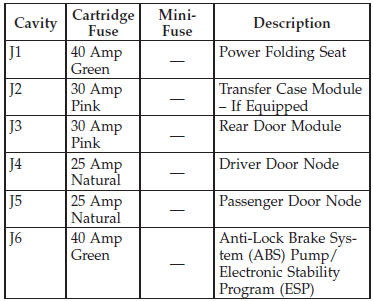

Totally Integrated Power Module (TIPM)
Totally Integrated Power Module (TIPM)

CAUTION:
• When installing the power module cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the TIPM, and possibly result in an electrical system failure.

• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating.

The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload.

If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
