Dodge Journey: ENGINE COMPARTMENT — 3.5L

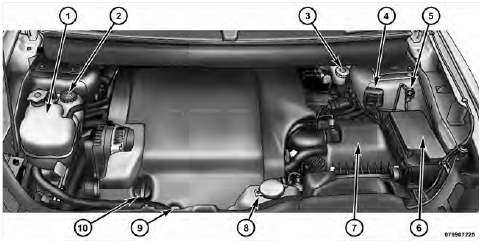

ENGINE COMPARTMENT — 3.5L
ENGINE COMPARTMENT — 3.5L

1 — Engine Coolant Reservoir.

6 — Totally Integrated Power Module (TIPM).

2 — Power Steering Fluid Reservoir.

7 — Air Cleaner Filter.

3 — Brake Fluid Reservoir.

8 — Washer Fluid Reservoir.

4 — Remote Jump Start (Positive Battery Post).

9 — Engine Oil Dipstick.

5 — Remote Jump Start (Negative Battery Post).

10 — Engine Oil Fill.

    ENGINE COMPARTMENT — 2.4L
    ENGINE COMPARTMENT — 2.4L 1 — Engine Coolant Reservoir. 7 — Totally Integrated Power Module (TIPM). 2 — Power Steering Fluid Reservoir. 8 — Automatic Transmission Dipstick. 3 — Engi ...

    ONBOARD DIAGNOSTIC SYSTEM — OBD II
    Your vehicle is equipped with a sophisticated Onboard Diagnostic system called OBD II. This system monitors the performance of the emissions, engine, and automatic transmission control systems. Whe ...
