INSTRUMENT CLUSTER
INSTRUMENT PANEL FEATURES
INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet.
5 — Hazard Switch.
9 — Climate Control.
2 — Air Outlet.
6 — Switch Bank.
10 — Radio.
3 — Instrument Cluster.
7 — Beve ...

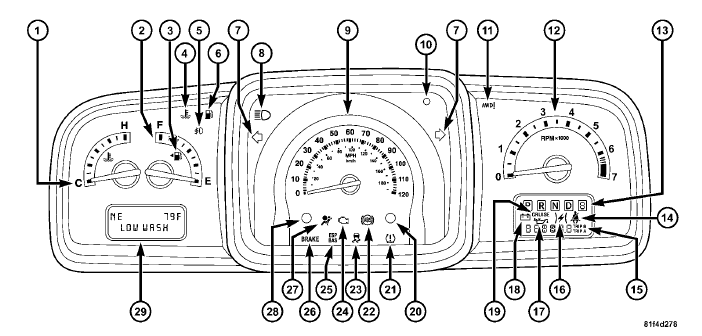

INSTRUMENT CLUSTER DESCRIPTIONS
1. Coolant Temperature Gauge
The temperature gauge indicates engine coolant temperature.
Any reading within the normal range indicates
that the cooling system is operating satisfactorily. The
gaug ...
See also:
Description, Operation
DESCRIPTION
NOTE: LHD model shown. RHD model similar.
Fig. 226: Heater Core-Description
The heater core (1) for the heating-A/C system is mounted within the HVAC air
distribution housing, ...
Standard procedure
PARKING BRAKE CABLE TENSION RELEASE - FOOT LEVER
Use the following procedure to release the tension from the parking brake
cables and the automatic adjuster in
the parking brake lever (pedal) mech ...
Switch, hazard warning
DESCRIPTION
Fig. 44: Instrument Panel Switch Pod
The hazard switch (3) is integral to the instrument panel switch pod (1),
which is secured to the instrument
panel center bezel just above the h ...
