Dodge Journey: Assembly

Manual Transmission BG6

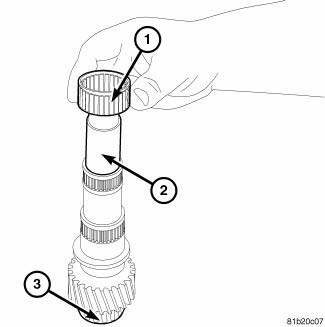

Fig. 239: Output Shaft #2 & Needle Bearing

1. Install the reverse needle bearing (1) onto the output shaft # 2 (2).

Manual Transmission BG6

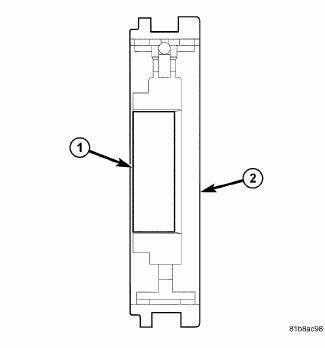

Fig. 240: Synchronizer

NOTE: Pay attention to the direction when inserting the reverse hub sleeve.

2. Install the reverse gear synchronizer onto the output shaft with (2) towards reverse gear.

Manual Transmission BG6
Fig. 241: Install Reverse Gear Onto Output Shaft #2

3. Install reverse gear (2) onto output shaft # 2.

4. Install reverse gear synchronizer onto output shaft using a Press (3).

Manual Transmission BG6

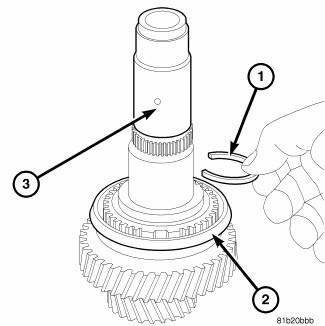

Fig. 242: Output Shaft & C-Clip

NOTE: Always use the largest snap that will fit into the grove.

5. Install the new snap ring (2) from the output shaft # 2.

Manual Transmission BG6

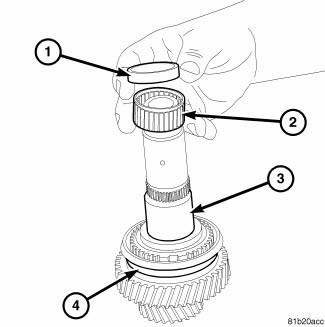

Fig. 243: #2 Bearing & Spacer

6. Install fifth needle bearing (2) and spacer (1) onto output shaft # 2 (3).

Manual Transmission BG6
Fig. 244: Synchronizer

NOTE: Pay attention to the direction when inserting the 5th-6th hub sleeve.

7. Install the fifth gear and fifth/sixth gear synchronizer onto the output shaft with (2) towards fifth gear.

Manual Transmission BG6
Fig. 245: 5th Gear & Synchronizer

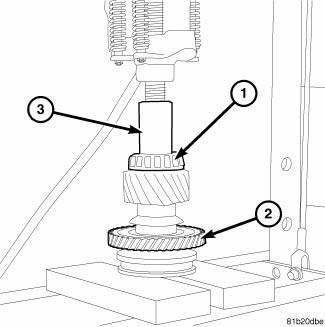

8. Use a press to install fifth gear and fifth/sixth gear synchronizer (2).

Manual Transmission BG6

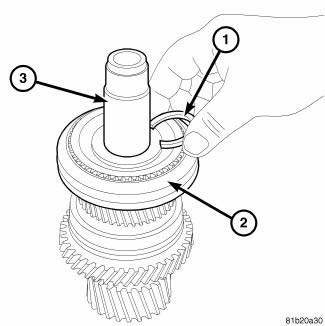

Fig. 246: Snap Ring At Output Shaft #2

NOTE: Always use the largest snap that will fit into the grove.

9. Install the new snap ring (1) from the output shaft.

Manual Transmission BG6
Fig. 247: Sixth Gear & Bearing

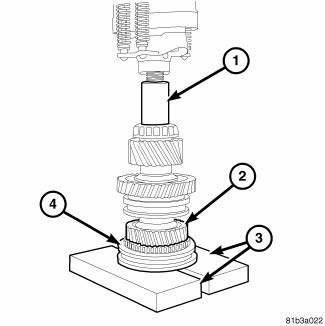

10. Install spacer sixth needle bearing and sixth gear onto shaft 11. Use Sleeve C-3717 to press sixth gear and bearing (3) onto shaft.

Manual Transmission BG6
Fig. 248: Snap Ring At Output Shaft

NOTE: Always use the largest snap that will fit into the grove.

12. Install the new snap ring (2) from the output shaft.
