Dodge Journey: Sensor, speed, output

DESCRIPTION

Automatic Transmission 41TE

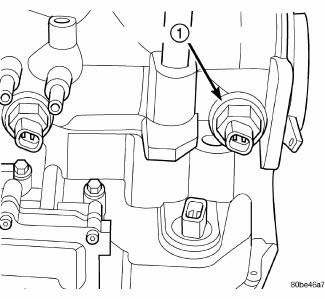

Fig. 378: Identifying Output Speed Sensor

  1. - OUTPUT SPEED SENSOR

The Output Speed Sensor (1) is a two-wire magnetic pickup device that generates an AC signal as rotation occurs. It is threaded into the transaxle case.

Automatic Transmission 41TE

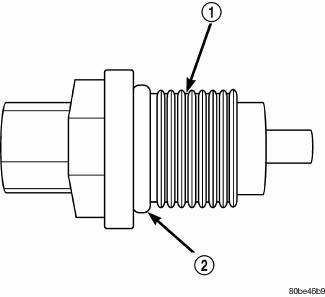

Fig. 379: Identifying Output Speed Sensor & O-Ring

  1. - OUTPUT SPEED SENSOR
  2. - O-RING

The Output Speed Sensor (1) is sealed with an O-ring (2) , and is considered a primary input to the Powertrain/Transmission Control.

OPERATION

Automatic Transmission 41TE

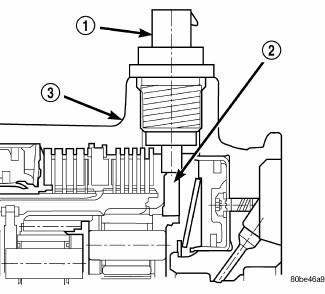

Fig. 380: Identifying Output Speed Sensor & Rear Planet Carrier/Output Shaft Assembly

  1. - OUTPUT SPEED SENSOR
  2. - REAR PLANET CARRIER/OUTPUT SHAFT ASSEMBLY
  3. - TRANSAXLE CASE

The Output Speed Sensor (1) provides information on how fast the output shaft is rotating. As the rear planetary carrier park pawl lugs pass by the sensor coil, an AC voltage is generated and sent to the PCM/TCM. The PCM/TCM interprets this information as output shaft RPM.

The PCM/TCM compares the input and output speed signals to determine the following:

  • Transmission gear ratio
  • Speed ratio error detection
  • CVI calculation

VEHICLE SPEED SIGNAL

The vehicle speed signal is taken from the Output Speed Sensor. The PCM converts this signal into a pulse per mile signal and sends the vehicle speed message across the communication bus to the BCM. The BCM sends this signal to the Instrument Cluster to display vehicle speed to the driver. The vehicle speed signal pulse is roughly 8000 pulses per mile.

REMOVAL

Automatic Transmission 41TE

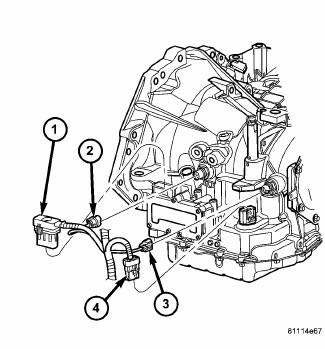

Fig. 381: Identifying Transmission Connectors

  1. - SOLENOID PACK CONNECTOR
  2. - INPUT SPEED SENSOR CONNECTOR
  3. - OUTPUT SPEED SENSOR CONNECTOR
  4. - TRANSMISSION RANGE SENSOR CONNECTOR

1. Disconnect battery negative cable.

2. Raise vehicle on hoist.

3. Disconnect output speed sensor connector (3) .

Automatic Transmission 41TE
Fig. 382: Identifying Output Speed Sensor

  1. - OUTPUT SPEED SENSOR

4. Unscrew and remove output speed sensor (1) .

Automatic Transmission 41TE
Fig. 383: Identifying Output Speed Sensor & O-Ring

  1. - OUTPUT SPEED SENSOR
  2. - O-RING

5. Inspect speed sensor O-ring (2) and replace if necessary.

INSTALLATION

Automatic Transmission 41TE
Fig. 384: Identifying Output Speed Sensor & O-Ring

  1. - OUTPUT SPEED SENSOR
  2. - O-RING

1. Verify o-ring (2) is installed into position.

2. Install and tighten output speed sensor (1) to 27 N.m (20 ft. lbs.).

Automatic Transmission 41TE
Fig. 385: Identifying Transmission Connectors

  1. - SOLENOID PACK CONNECTOR
  2. - INPUT SPEED SENSOR CONNECTOR
  3. - OUTPUT SPEED SENSOR CONNECTOR
  4. - TRANSMISSION RANGE SENSOR CONNECTOR

3. Connect speed sensor connector.

4. Connect battery negative cable.
