Dodge Journey: Knob, gearshift
REMOVAL

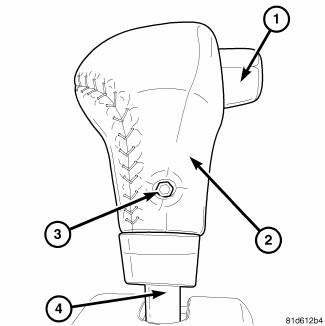

Fig. 357: Removing/Installing Gearshift Knob
1. Loosen the set screw (3) on the shift knob (2).
2. Hold in the shift knob button (1).
3. Pull up on the shift knob (2) while holding the shift knob button (1) in.
INSTALLATION
Fig. 358: Removing/Installing Gearshift Knob
1. While holding the shift knob button (1) in install the shift knob (1) onto the shift mechanism shaft (4).
2. Tighten the set screw (3).
