Dodge Journey: Cable, shift

REMOVAL

Automatic Transmission 41TE

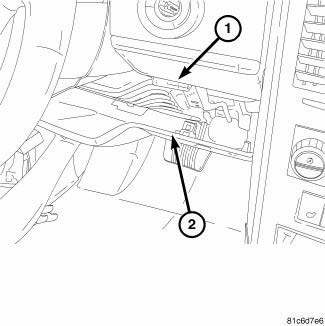

Fig. 306: Identifying Knee Blocker

1. Remove the knee blocker (2).

Automatic Transmission 41TE

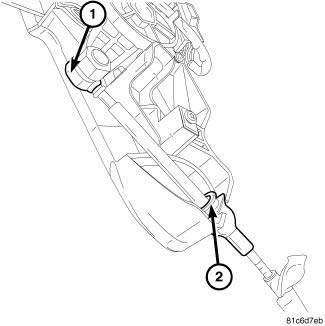

Fig. 307: Identifying Shift Cable At Shifter

NOTE: Ensure the lock tab on the shift cable (2) is depressed before pulling the cable from the shifter housing.

2. Remove the cable from the shifter (1, 2).

Automatic Transmission 41TE

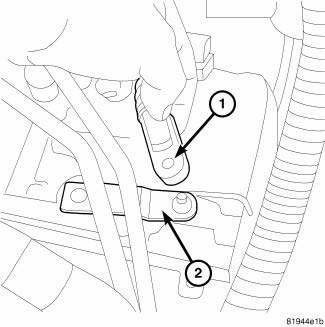

Fig. 308: Identifying Gearshift Cable & Transaxle Manual Valve Lever

3. Disconnect gearshift cable (1) from transaxle manual valve lever (2).

4. Disconnect gearshift cable from the bracket.

Automatic Transmission 41TE

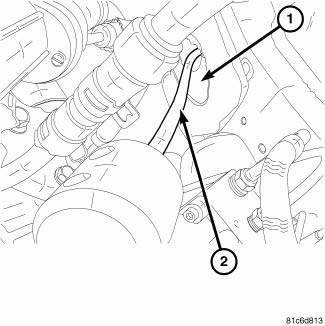

Fig. 309: Identifying Shift Cable At Bulkhead

5. Remove the grommet form the bulkhead 6. Pull the cable (2) through the bulkhead (1) into the passenger compartment.

INSTALLATION

Automatic Transmission 41TE
Fig. 310: Identifying Shift Cable At Bulkhead

NOTE: Ensure rubber grommet in the bulkhead is fully seated to prevent water leaking into the passenger compartment.

1. Install the shift cable (2) through the bulkhead (1) from the passenger compartment.

2. Seat rubber grommet in the bulkhead.

Automatic Transmission 41TE
Fig. 311: Identifying Gearshift Cable & Transaxle Manual Valve Lever

3. Connect gearshift cable to the bracket.

4. Connect gearshift cable (1) to transaxle manual valve lever (2).

Automatic Transmission 41TE
Fig. 312: Identifying Shift Cable At Shifter

NOTE: Ensure the lock tab on the shift cable (2) is seated after the cable in installed to the shifter housing.

5. Install the cable to the shifter (1, 2).

6. Install the knee blocker (2).

ADJUSTMENT

1. Park the vehicle on level ground and set the parking brake.

2. Place the gearshift lever in gated park (P) and remove ignition key.

3. Loosen the cable adjustment screw at the transaxle manual valve lever.

4. Pull the gearshift lever fully forward to the park detent position.

5. Release the park brake, then rock the vehicle to assure it is in park. Reset the park brake.

6. Tighten the cable adjustment screw to 8 N.m (70 in. lbs.). Gearshift cable should now be properly adjusted.

7. Verify adjustment by using the verification procedure.

VERIFICATION

1. Place gearshift lever in gated park (P).

2. Attempt to move vehicle by rocking back and forth on level ground. If vehicle does not move, attempt to start engine. If engine starts, the park position is correct.

3. Set parking brake.

4. Turn key to on/run and depress brake pedal. Place gearshift lever in neutral (N).

5. Attempt to start engine. If engine starts in both neutral (N) or park (P), gearshift cable is adjusted properly. No adjustment is required.

6. If engine does not start in either park (P) or neutral (N), perform adjustment procedure.
