Dodge Journey: Duct, floor distribution, rear

REMOVAL

Heating & Air Conditioning

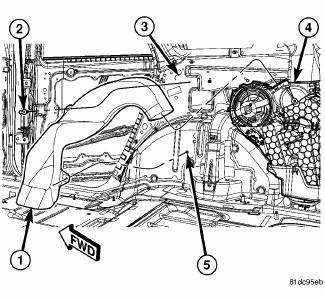

Fig. 159: Rear Floor Distribution Duct

1. Remove right quarter trim panel.

2. Remove the push-pin retainer (2) that secures the rear floor distribution duct (1) to the right inner quarter panel (3).

3. Disengage the rear floor distribution duct from the stud (5) located on the right inner quarter panel.

4. Disengage the rear floor distribution duct from the rear heater-A/C housing (4) and remove the duct.

INSTALLATION

Heating & Air Conditioning
Fig. 160: Rear Floor Distribution Duct

1. Install the rear floor distribution duct (1) onto rear heater-A/C housing (4). Make sure the duct is fully engaged to the housing.

2. Engage the rear floor distribution duct to the stud (5) located on the right inner quarter panel (3).

3. Install the push-pin retainer (2) that secures the rear floor distribution duct to the right inner quarter panel.

4. Install the right quarter panel trim.
