Dodge Journey: Removal

WARNING: Disable the airbag system before attempting any steering wheel, steering column, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to take the proper precautions could result in an accidental airbag deployment and possible serious or fatal injury.

NOTE: LHD model shown in illustrations. RHD model similar.

RIGHT FRONT FLOOR DUCT

Heating & Air Conditioning

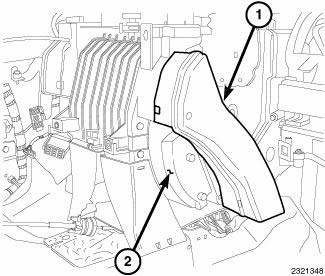

Fig. 67: Duct-Right Front Floor PM

NOTE: Illustration shown with instrument panel removed for clarity.

1. On LHD models, remove the glove box bin.

2. Disconnect the right floor duct (1) from the right side of the HVAC housing (2) and remove the duct.

LEFT FRONT FLOOR DUCT

Heating & Air Conditioning

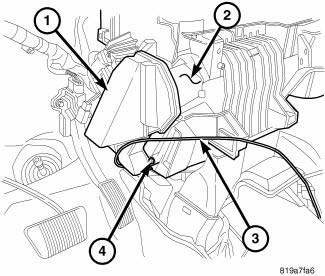

Fig. 68: Duct-Left Front Floor

NOTE: Illustration shown with instrument panel removed for clarity.

1. On RHD models, remove the glove box bin.

2. On LHD models, disconnect the shift interlock cable (3) from the left floor duct (1) and position the cable out of the way.

3. Remove the screw (4) that secures the left floor duct to the left side of the HVAC housing (2).

4. Disconnect the left floor duct from the HVAC housing and remove the duct.

REAR FLOOR DISTRIBUTION DUCTS

Heating & Air Conditioning

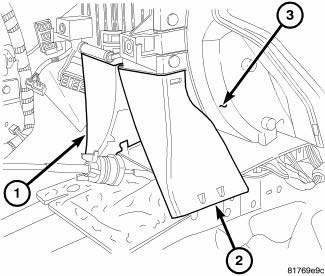

Fig. 69: Ducts-Rear Floor Distribution PM

1. Remove the instrument panel.

2. Remove the rear seat floor ducts. Refer to REAR SEAT FLOOR DUCTS.

3. Disconnect the left rear floor distribution duct (1) and the right rear floor distribution duct (2) as required from the HVAC housing (3) and remove the duct(s).

REAR SEAT FLOOR DUCTS

Heating & Air Conditioning

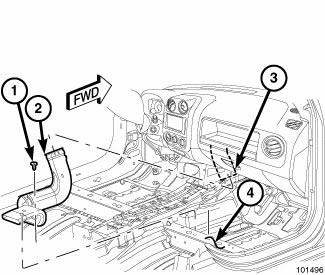

Fig. 70: Ducts-Rear Seat Floor PM

NOTE: Right side rear floor duct shown. Left side duct similar.

1. Remove the center floor console.

2. Remove the front seat from the side of the vehicle being serviced. 3. Pull the carpet back to gain access to the rear seat floor duct (2). 4. Remove the screw (1) and disengage the retainer that secures the rear seat floor duct to the floor support (4).

5. Disconnect the rear seat floor duct from the rear floor distribution duct (3) and remove the rear seat duct (s).

    Installation
    NOTE: LHD model shown in illustrations. RHD model similar. RIGHT FRONT FLOOR DUCT Fig. 71: Duct-Right Front Floor PM NOTE: Illustration shown with instrument panel removed for clarity. ...
