Dodge Journey: Description

Exhaust System

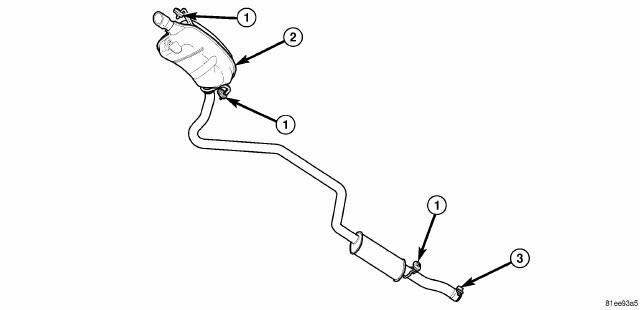

Fig. 1: Muffler/Exhaust Pipe Assembly - Single Tail Pipe

  1. - INSULATOR
  2. - MUFFLER/EXHAUST PIPE ASSEMBLY
  3. - BAND CLAMP

The exhaust system on the 2.4L and 2.7L engine models consists of a front mounted catalytic converter, single outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.

Exhaust System

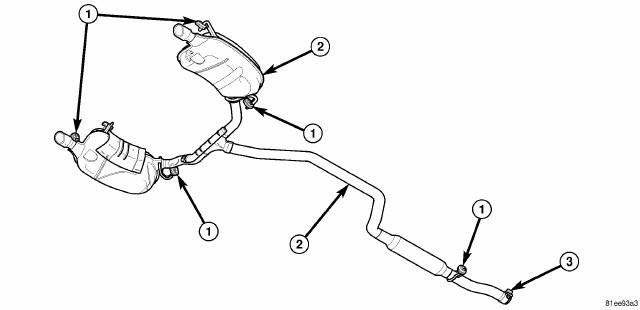

Fig. 2: Muffler/Exhaust Pipe Assembly - Dual Tail Pipe

  1. - INSULATOR
  2. - MUFFLER/EXHAUST PIPE ASSEMBLY
  3. - BAND CLAMP

The exhaust system on the 3.5L engine models consists of a front mounted catalytic converter, dual outlet resonator/muffler assembly, band clamp, and support isolators. The upstream oxygen sensor is located in the exhaust manifold. The downstream oxygen sensor is located in the catalytic converter.
