Dodge Journey: Housing, coolant outlet
Removal

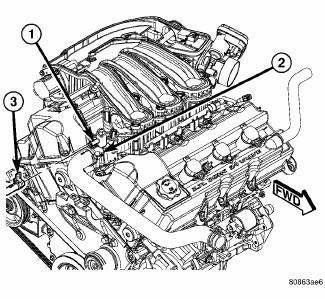

Fig. 78: COOLANT OUTLET CONNECTOR - 2.7L
- - BOLT (2)
- - BOLT (2)
- - COOLANT OUTLET CONNECTOR
WARNING: Do not remove pressure cap with the system hot and under pressure because serious burns from coolant can occur.
1. Drain cooling system.
2. Disconnect engine coolant temperature sensor connector.
3. Disconnect hoses at coolant outlet connector.
4. Remove bolts attaching coolant outlet connector.
5. Remove coolant outlet connector.
Installation
Fig. 79: COOLANT OUTLET CONNECTOR - 2.7L
- - BOLT (2)
- - BOLT (2)
- - COOLANT OUTLET CONNECTOR
1. Clean sealing surfaces. Inspect gaskets for tears and cuts. Replace as necessary.
2. Install coolant outlet connector and tighten bolts to 12 N.m (105 in. lbs.).
3. Connect hoses at coolant outlet connector.
4. Connect engine coolant temperature sensor connector.
5. Fill cooling system.
