Dodge Journey: Valve, oil pressure relief
Removal

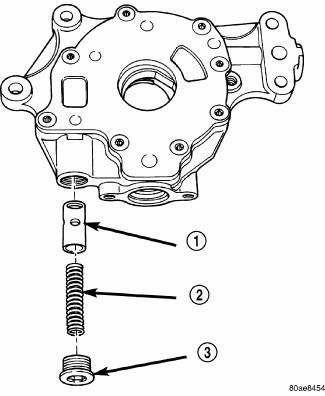

Fig. 285: Oil Pressure Relief Valve
- - RELIEF VALVE
- - SPRING
- - RETAINER CAP
1. Remove the oil pan.
2. Remove the pressure relief valve (1) by remove the threaded retaining cap from the oil pump housing.
CAUTION: Oil pump pressure relief valve must be installed as shown in illustration or engine damage may occur.
3. Remove spring and relief valve.
Installation
Fig. 286: Oil Pressure Relief Valve
- - RELIEF VALVE
- - SPRING
- - RETAINER CAP
1. Lubricate relief valve with oil.
CAUTION: The pressure relief valve must be installed as shown in illustration or engine damage may occur.
2. Install relief valve (1) , spring and retainer cap. Tighten cap to 12 N.m (105 in. lbs.).
3. Install the oil pan.
