Dodge Journey: Ring(s), piston

Standard Procedure

PISTON RING FITTING

2.7L DOHC Engine

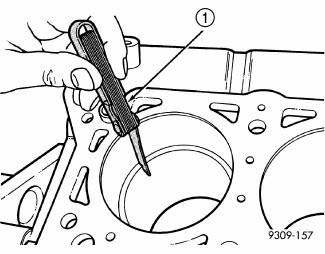

Fig. 200: CHECK GAP ON PISTON RINGS

  1. - FEELER GAUGE

1. Wipe cylinder bore clean. Insert ring and push down with piston to ensure it is square in bore. The ring gap measurement must be made with the ring positioning at least 12 mm (0.50 inch.) from bottom of cylinder bore. Check gap with feeler gauge (1). Refer to Engine - Specifications for clearance measurements.

2.7L DOHC Engine
Fig. 201: Measuring Piston Ring Side Clearance

  1. - FEELER GAUGE

2. Check piston ring to groove clearance (1).

Removal

2.7L DOHC Engine
Fig. 202: PISTON RING - INSTALLATION

  1. - SPACER EXPANDER
  2. - SIDE RAIL

1. Remove piston and connecting rod.

2. Remove No. 1 and No. 2 piston rings from piston using a ring expander tool.

3. Remove upper oil ring side rail.

4. Remove lower oil ring side rail.

5. Remove oil ring expander.

Installation

2.7L DOHC Engine

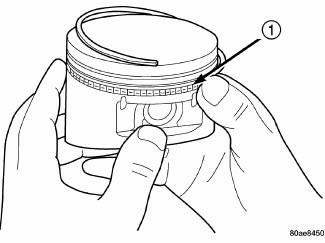

Fig. 203: SIDE RAIL - INSTALLATION

  1. - SIDE RAIL END

1. Measure clearance of piston rings to the cylinder bore and piston.

CAUTION: Install piston rings in the following order:

  • Oil ring expander.
  • Upper oil ring side rail.
  • Lower oil ring side rail.
  • No. 2 Intermediate piston ring.
  • No. 1 Upper piston ring.

2. Install oil ring expander.

Install the side rail (1) by placing one end between the piston ring groove and the oil ring expander. Hold end firmly and press down the portion to be installed until side rail is in position. Do not use a piston ring expander during this step.

3. Install upper side rail first and then the lower side rail.

2.7L DOHC Engine
Fig. 204: Upper and Intermediate Rings - Installation

NOTE: The No. 1 and No. 2 piston rings have a different cross section. Ensure No.

2 ring is installed with manufacturers I.D. mark (dot) facing up, towards top of the piston.

4. Install No. 2 piston ring and then No. 1 piston ring.

2.7L DOHC Engine
Fig. 205: PISTON RING END GAP POSITION

  1. - SIDE RAIL UPPER
  2. - NO. 1 RING GAP
  3. - PISTON PIN
  4. - SIDE RAIL LOWER
  5. - NO. 2 RING GAP AND SPACER EXPANDER GAP
