Dodge Journey: Air cleaner

REMOVAL

2.7L DOHC Engine

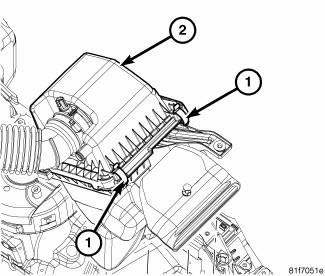

Fig. 85: Air Filter Housing Clips

1. Disengage the air filter housing clips (1).

2. Slide the air filter housing cover (2) forward slightly to disengage tabs from the bottom of the air filter housing.

3. Remove air cleaner element from air cleaner housing.

INSTALLATION

1. Install air filter element into the bottom half of the air filter housing.

2.7L DOHC Engine
Fig. 86: Air Filter Housing Clips

2. Slide the air filter housing cover (2) rearward to engage the tabs into the bottom half of the air filter housing.

3. Reengage the air filter housing clips (1).
