Dodge Journey: Intermediate shaft, diesel

REMOVAL

2.0L DIESEL

1. Remove the right half shaft.

Differential and Driveline
Fig. 50: 2.0L Diesel Right Half Shaft Components

2. Remove the two intermediate shaft bolts (1).

3. Remove the intermediate shaft (2).

Differential and Driveline

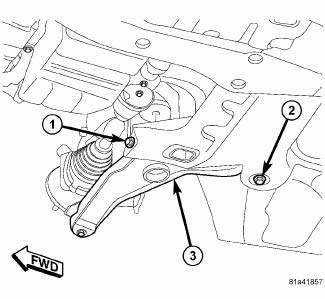

Fig. 51: Intermediate Shaft Bracket & Bolts

4. If necessary, remove the intermediate shaft bracket bolts (1) and the intermediate shaft bracket (2).

INSTALLATION

2.0L DIESEL

Differential and Driveline
Fig. 52: Intermediate Shaft Bracket & Bolts

1. If the intermediate shaft bracket was removed, install the intermediate shaft bracket (2), and the intermediate shaft bracket bolts (1). Tighten the bolts to 23 Nm (17 in. lbs.).

Differential and Driveline
Fig. 53: 2.0L Diesel Right Half Shaft Components

2. Install the intermediate shaft (2).

3. Install the two intermediate shaft bolts (1). Tighten the bolts to 38 Nm (28 in. lbs.).

4. Install the right axle half shaft.

    Intermediate shaft, gas
    REMOVAL 2.4L 1. Remove the right half shaft. Fig. 44: Intermediate Shaft - 2.4L 2. Remove the three intermediate shaft bolts (1). 3. Remove the intermediate shaft (2). 2.7L 1. Remove the r ...
