Dodge Journey: Removal

WITH FOOT LEVER

1. Release the parking brake.

2. Raise and support the vehicle.

3. Manually release the parking brake cable tension.

Brakes
Fig. 186: PARKING BRAKE CABLE EQUALIZER

4. Collapse the front cable retainer fingers at the end of the cable housing where it contacts the intermediate bracket (1). Pull the cable (5) forward and remove it from the intermediate bracket.

5. Push the front cable strand into the housing until it bottoms.

Brakes

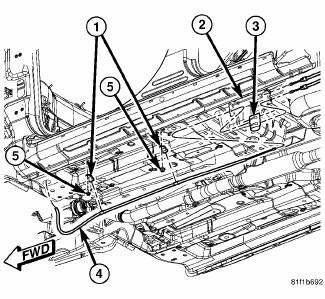

Fig. 187: CABLE MOUNTING TO UNDERBODY WITH FOOT LEVER

6. Remove the nuts (5) securing the front cable routing clamps (1) to the underbody of the vehicle.

7. Remove the cable routing clamps (1) from the cable (4).

8. Lower the vehicle.

9. Remove the left front door opening sill scuff plate.

10. Remove the lower cowl trim.

11. Remove the steering column opening cover.

Brakes

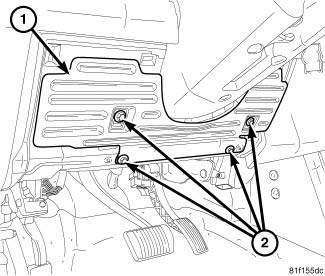

Fig. 188: STEERING COLUMN COVER REINFORCEMENT

12. Remove the steering column cover reinforcement mounting screws (2). Remove the steering column cover reinforcement (1).

13. Pull the parking brake lever pedal up and hold it in this position.

Brakes

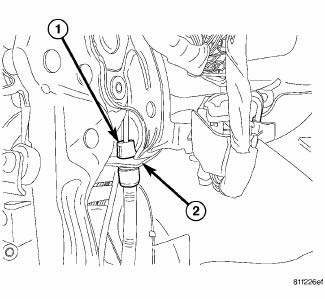

Fig. 189: CABLE BUTTON LOCATED IN LEVER

14. Rotate the cable strand around at the lever mechanism until the strand lines up with the slot, then remove the cable end button (2) from the lever mechanism (1).

NOTE: Prior to removing cable from lever, note cable routing through lever for ease in reassembly.

Brakes

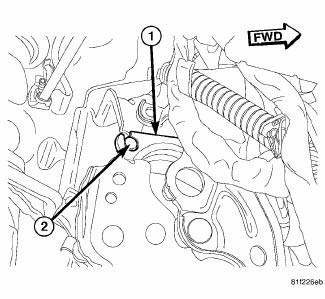

Fig. 190: CABLE HOUSING RETAINED IN LEVER

15. Collapse the front cable retainer fingers on the end of the cable housing (1) at the lever (2).

16. Remove the cable from the parking brake lever (3).

17. Lift back the carpet and pull the cable seal loose from the floor pan.

18. Remove the front parking brake cable from the vehicle through the hole in the floor pan.

WITH HAND LEVER

Brakes

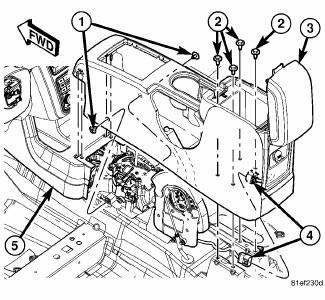

Fig. 191: CENTER CONSOLE

1. Remove the floor center console.

2. Manually release the parking brake cable tension.

3. Raise and support the vehicle.

Brakes

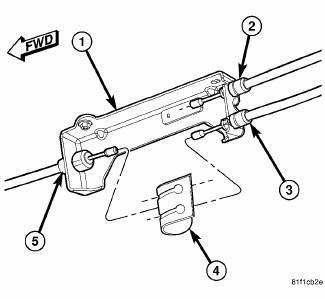

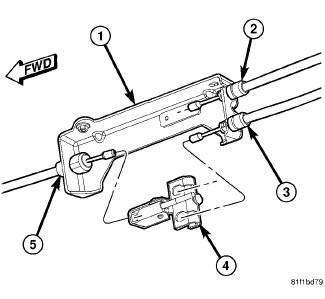

Fig. 192: CABLE EQUALIZER/TENSIONER

4. Remove the parking brake cable equalizer/bent nail tensioner (4) from the three parking brake cables (2, 3, 5).

5. Collapse the front cable retainer fingers at the end of the cable housing where it contacts the intermediate bracket (1). Pull the cable (5) forward and remove it from the intermediate bracket.

Brakes

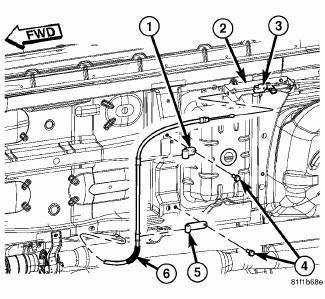

Fig. 193: CABLE MOUNTING TO UNDERBODY WITH HAND LEVER

6. Remove the screws (4) securing the front cable routing clamps (1, 5) to the underbody of the vehicle.

7. Remove the cable routing clamps (1, 5) from the cable (6).

8. Lower the vehicle.

Brakes

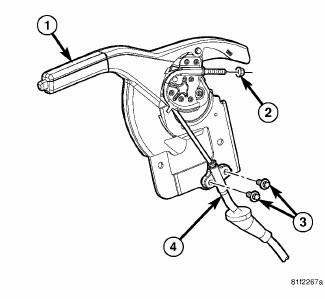

Fig. 194: CABLE MOUNTING TO HAND LEVER

9. Remove the mounting screws (3) fastening the front cable (4) to the side of the parking brake lever (1).

10. Remove the adjusting nut (2) from the end of the front parking brake cable.

11. Remove the cable strand from the lever.

12. Pull the cable seal loose from the floor pan and remove the front parking brake cable from the vehicle through the access hole in the floor pan.

    Installation
    WITH FOOT LEVER 1. Pass most of the front parking brake cable down through the access hole in the floor pan from inside the vehicle. Fig. 195: CABLE HOUSING RETAINED IN LEVER 2. Insert the lev ...
