Dodge Journey: Removal

LEFT-HAND-DRIVE

CAUTION: The vacuum in the power brake booster must be depleted before removing the master cylinder to avoid damaging the master cylinder and to prevent inhalation of the o-ring or any other contamination into the booster. The preferred method is to pump the brake pedal while the engine is not running until the brake pedal becomes firm. An alternative method is to remove and immediately reinstall the check valve located on the booster. If the check valve is removed, special care should be taken to ensure that the grommet is not damaged and remains seated, the check valve is dry and free of debris, and that contaminates cannot be ingested during removal.

1. With the engine not running, pump the brake pedal 4-5 strokes until the pedal feel is firm.

2. Disconnect the negative (ground) cable from the battery and isolate the cable.

Brakes
Fig. 90: BRAKE FLUID LEVEL SWITCH CONNECTOR

3. Disconnect the wiring harness connector (1) from the brake fluid level switch (2) in the master cylinder brake fluid reservoir.

Brakes
Fig. 91: PRIMARY AND SECONDARY BRAKE TUBES

4. Disconnect the primary (1) and secondary (3) brake tubes at the master cylinder (2) outlet ports. Install plugs at all of the open brake tube outlets on the master cylinder.

Brakes
Fig. 92: CLUTCH ACTUATOR HOSE AT MASTER CYLINDER

5. If equipped with a manual transaxle, remove the clamp and slide the clutch actuator hose (2) off the reservoir port (1).

Brakes
Fig. 93: MASTER CYLINDER MOUNTING NUTS

6. Clean the area around where the master cylinder (2) attaches to the power brake booster (1) using a suitable brake cleaner such as Mopar Brake Parts Cleaner or an equivalent.

7. Remove the two nuts (3) attaching the master cylinder (2) to the power brake booster (1).

8. Slide the master cylinder straight out of the power brake booster.

RIGHT-HAND-DRIVE

CAUTION: The vacuum in the power brake booster must be depleted before removing the master cylinder to avoid damaging the master cylinder and to prevent inhalation of the o-ring or any other contamination into the booster. The preferred method is to pump the brake pedal while the engine is not running until the brake pedal becomes firm. An alternative method is to remove and immediately reinstall the check valve located on the booster. If the check valve is removed, special care should be taken to ensure that the grommet is not damaged and remains seated, the check valve is dry and free of debris, and that contaminates cannot be ingested during removal.

1. With the engine not running, pump the brake pedal 4-5 strokes until the pedal feel is firm.

2. Disconnect the negative (ground) cable from the battery and isolate the cable.

3. Remove the engine appearance cover.

Brakes

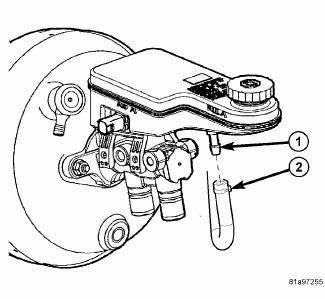

Fig. 94: CLUTCH ACTUATOR HOSE AT MASTER CYLINDER

4. If equipped with a manual transaxle, remove the clamp and slide the clutch actuator hose (2) off the reservoir port (1).

Brakes

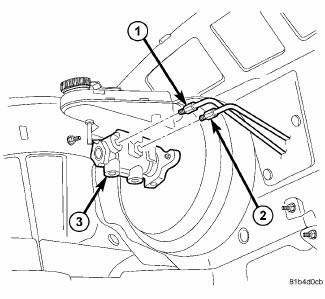

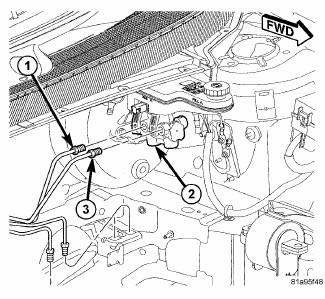

Fig. 95: PRIMARY AND SECONDARY BRAKE TUBES - RHD

5. Disconnect the primary (2) and secondary (1) brake tubes at the master cylinder outlet ports. Install plugs at both of the open brake tube outlets on the master cylinder (3).

Brakes

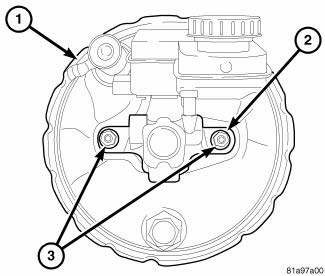

Fig. 96: MASTER CYLINDER MOUNTING NUTS

6. Clean the area around where the master cylinder (2) attaches to the power brake booster (1) using a suitable brake cleaner such as Mopar Brake Parts Cleaner or an equivalent.

Brakes

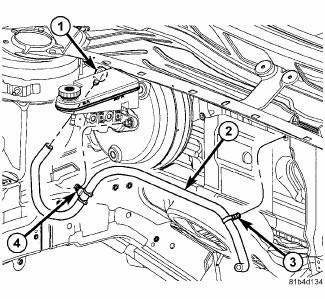

Fig. 97: VACUUM HOSE AT BOOSTER - RHD

7. Remove the booster vacuum hose routing clip (4) from the master cylinder mounting stud.

Brakes
Fig. 98: MASTER CYLINDER MOUNTING NUTS

8. Remove the two nuts (3) attaching the master cylinder (2) to the power brake booster (1).

Brakes

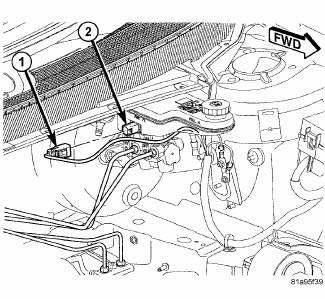

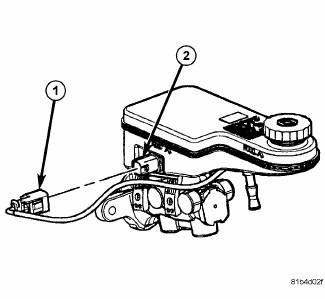

Fig. 99: BRAKE FLUID LEVEL SWITCH CONNECTOR - RHD

9. Slide the master cylinder straight out of the power brake booster, then disconnect the wiring harness connector (1) from the brake fluid level switch (2).

10. Remove the master cylinder from the engine compartment.

    Standard Procedure
    MASTER CYLINDER BLEEDING 1. Clamp the master cylinder in a vise with soft-jaw caps. Fig. 88: BLEEDING MASTER CYLINDER WITH ABS 2. Thread a Bleeder Tube (2), Special Tool 8358-1, into the primary ...

    Disassembly, Assembly
    DISASSEMBLY NOTE: If the reservoir is being replaced, the new reservoir will come with a brake fluid level switch installed. The old fluid switch does not need to be transferred from the ...
